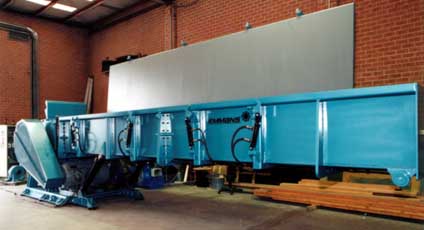

Model
80/1080 6MPF Force Feed Series
PP,
PE80 & PE100 pipe up to 630mm diameter, 3 or
6 metre lengths, 110kw to 220kw. Force feed with
high current load control system.
(see
specification below)
LARGER
DIAMETER ON REQUEST.
|
|
|

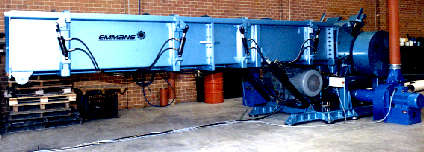

Model
80/1080
6MP Tilt Series
MPVC
Pipe profile up to 500mm diameter, 6 metre lengths,
160kw. Gravity feed with high current load control
hydraulic braking system.
(see
specification below)
|
|
| Specification |
Model
80/1080 6MPF |
Model
80/1080 6MP |
| Throat
Opening (mm) |
710x1080
|
710x1080
|
| Rotor
Diameter (mm) |
800
|
800
|
| Rotating
Blades |
40
|
40
|
| Stationary
Blades |
2x2 |
2x2 |
| Cutting
Edges |
5
|
5
|
| Motor
(Kw) |
110
- 132 - 160 - 220 |
160 |
| Screen
sizes |
10 |
10 |
Output
(up to) kg
- (depending on screen sizes) |
500
- 1000 |
500
- 2000 |
| Weight
(kg) |
20000 |
18000
|
| Dimensions
L x W x H |
9000x2400x2500
|
8000x2400x2500
|
|
For
further details contact manufacturer:
Emmans Granulators Pty Ltd.
46 -48 Radford Road, Reservoir,
Victoria 3073 Australia
•Phone: (+613) 9462 1644
•Fax: (+613) 9462 1052
Email: emmans@bigpond.com.au |
|
|
