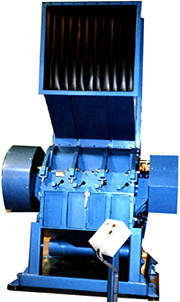

Model 80/1080S Series
Heavy
duty for large demanding applications and high
outputs. Also available in ES Series for lighter
duties
(see
specification below)
|
|
|
Model 80/1215S Series
Heavy
duty for large wider demanding applications and
high outputs.
Also available in ES series for lighter duties.
(see
specification below)
|
 |
|
| Specification |
Model
80/1080 |
Model
80/1215 |
| Throat
Opening (mm) |
800x1080
|
800x1215
|
| Rotor
Diameter (mm) |
800
|
800
|
| Rotating
Blades |
24,32,40
|
27,36,45
|
| Stationary
Blades |
2x2 |
2x2 |
3rd
Blade for heavy wall items
- (optional) |
_
|
_ |
| Cutting
Edges |
3,4,5
|
3,4,5
|
| Motor
(Kw) |
90
- 132 - 160 |
110
- 132 - 160 |
| Screen
sizes |
10,12,16
|
10,12,16
|
Output
(up to) kg
- (depending on screen sizes) |
2500
|
3000
|
| Weight
(kg) |
12000
|
15000
|
| Dimensions
L x W x H |
2600x2400x3700 |
2600x2600x3700
|
|
For
further details contact manufacturer:
Emmans Granulators Pty Ltd.
46 -48 Radford Road, Reservoir,
Victoria 3073 Australia
•Phone: (+613) 9462 1644
• Fax: (+613) 9462 1052
Email: emmans@bigpond.com.au |
|
|
